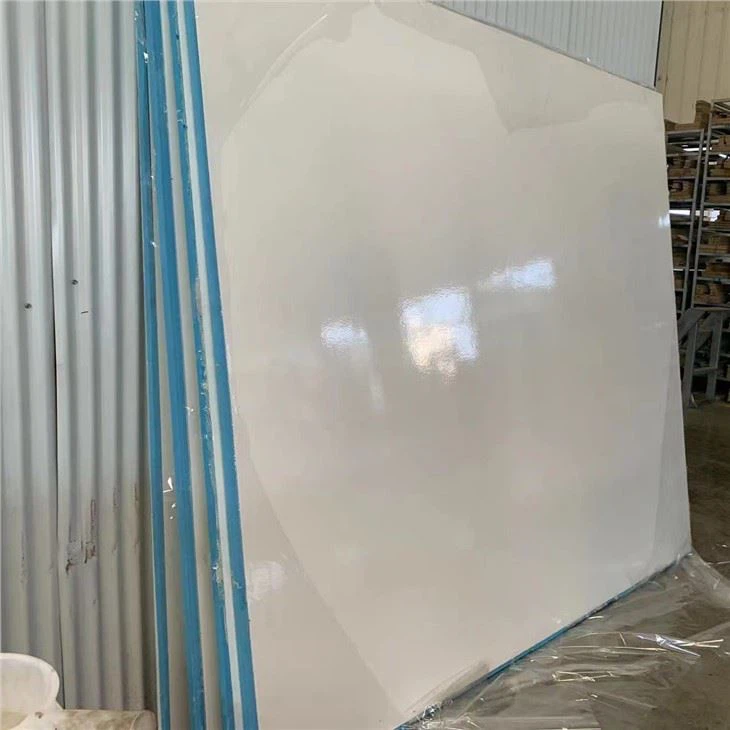

XPS Composite Panel For RV

XPS Composite Panel For RV

Structure: FRP skin + XPS (extruded polystyrene foam) + FRP skin

Product Description

XPS composite panel for RV serve as the side panels and polystyrene (XPS also known as extruded polystyrene) serves as the core. They are compounded by high pressure and vacuum, which guarantees strength and stability.

What is a sandwich panel kit?

A sandwich panel is any structure made up of three layers: a low-density core (PUR XPS) and a thin skin bonded on each side. Sandwich panels are used in applications requiring high structural rigidity and low weight. The structural function of a sandwich panel is similar to that of a classic I-beam, where the two face sheets primarily resist in-plane and transverse bending loads (similar to the flanges of an I-beam), while the core resists primarily shear loads (similar to an I-beam beam web). The idea is to use light/soft but thick layers for the core and firm but thin layers for the panels. This results in an increase in the overall thickness of the panel, which often improves structural properties, such as bending stiffness, and maintains or even reduces weight. Sandwich panels are an example of sandwich structural composites: the technology's strength and lightness make it popular and widely used. Its versatility means that the panels have many applications and come in many forms: core and skin materials can vary widely, and the core can be PU, XPS, honeycomb or solid-fill plywood. A closed panel is called a box.

Advantages

1. Environmental protection: We still shoulder the responsibility of protecting the world's environment, so we use injection foaming technology to produce sheets, all chemical foaming and compounding processes are in a closed sheet structure, no additional adhesives or resins are required And other chemical raw materials, no harmful gas is produced during the production process; and the surface metal skin can be degraded under natural conditions.

2. Energy saving: the metal shell has a small specific heat capacity, and the temperature in the box cools down quickly. The working time of the refrigeration unit can be reduced to save costs and keep the sky blue.

3. Good ductility: no micro-cracks will occur after collision, ensuring that no water will enter the inside of the panel,

4. Health protection

4.1 Gel-coated metal panels have an antimicrobial component added to the surface coating. effective inhibitory activity

Food spoilage Escherichia coli, Staphylococcus aureus, Pseudomonas aeruginosa and other bacteria and molds can meet the relevant requirements of Japanese Industrial Standard JIS Z 2801:2010. During the service life of the coating, the disinfection effect does not decrease as the surface is cleaned.

4.2 The surface coating has passed the USDA Clean Board certification.

4.3 Add special functional additives to the surface coating to make the paint film hydrophilic, and the dust or oil stains attached to the paint film surface are easier to remove, making it durable and self-effect. cleaning function.

any size contact me sales03@frpexpert.com
