Corrugated Fiberglass Panel

Product Description

The full name of FRP lighting board is Fibreglass Reinfored Polyester, Chinese is glass fiber reinforced polyester (FRP lighting board), commonly known as glass fiber reinforced plastic, also known as transparent tile.

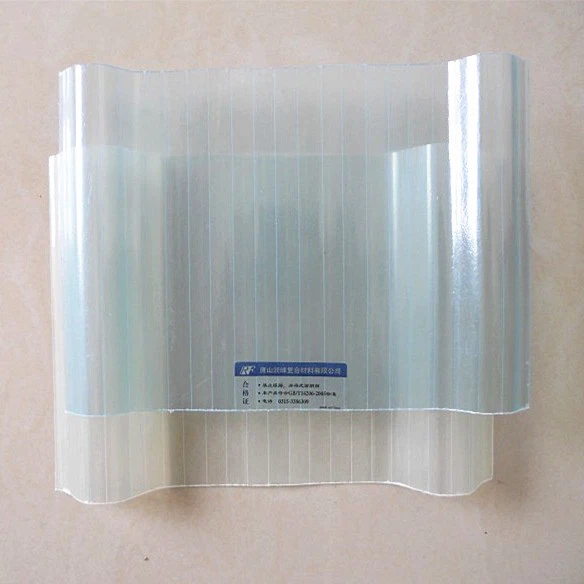

Corrugated fiberglass panel is a lighting material used in conjunction with steel structures. It is mainly composed of high-performance film, reinforced polyester and glass fiber. The film should play a good role in anti-ultraviolet and anti-static. Anti-ultraviolet is to protect The polyester of the FRP lighting board does not yellow and age, and loses light transmission properties prematurely. Antistatic is to ensure that the dust on the surface is easily washed away by rain or blown away by the wind, so as to maintain a clean and beautiful surface. Due to its stable quality and durable features, it is very popular among customers, and the products can be widely used on roofs and walls of industrial/commercial/civil buildings.

If you need samples of corrugated fiberglass panel, don't hesitate to contact us!

Product Installation Instructions

1. The roof is nailed to the crest, and the side wall is nailed to the trough;

2. Lap length:

A. The length of the roof lap depends on the slope of the roof. In principle, the length shall not exceed 400m, and the overlapping joint shall be sealed with double butyl tape if the slope is too small;

B. The lap length of the side wall is 50-150m

3. The short fiber distance in the sliver direction should not be greater than 600m;

4. Do not use too much force when nailing. It is recommended to add a waterproof gasket when nailing;

5. Use butyl sealing tape at the lap joints of the lighting panels;

6. It is strictly forbidden to step on the lighting board during installation.

If you have purchased Runfeng's corrugated fiberglass panel, we can provide you with installation instructions!

Company Profile

Tangshan Runfeng Composite Materials Co., Ltd. was established in 2004 and currently has more than 100 employees. There are currently 3 production bases in Tangshan, covering an area of 45,000 square meters. In 2019, it was rated as a "high-tech enterprise". It has a professional R&D laboratory and advanced experimental equipment, and specializes in R&D and production of continuous forming FRP sheets and related products.

Mainly involved in the following two aspects: First, the construction field: FRP flat panels, daylighting corrugated panels, special anti-corrosion panels, special flame-retardant panels, composite panels, special panels for animal husbandry, special panels for hatching equipment, special panels for cooling towers, decorative pattern panels Second, the field of transportation: special panels for RVs, passenger cars, rail transit, tanks, refrigerated cars, express logistics, electronic products, swimming pool maintenance and other panels. The products have passed ASTM.BS and other product performance tests for many times. Up to now, the company has 2 registered trademarks and more than 10 national patents.

Contact Us

Welcome to buy Runfeng lighting board. FRP lighting board has the advantages of high light transmittance, long service life and easy installation. It must be your best choice. To provide you with factory price, satisfactory service and timely delivery, we look forward to your contact.
