FRP Gelcoat Panels For Truck & RV Bodies
2.Product category: FRP Gelcoat Panel Refrigerated Truck box
3.Molding method: Continuous molding
4.Size: Can be customized
5.Thickness: 1.2mm-2.5mm, can be customized
6.Color: Raul color card or customized
Send Inquiry
Product Details ofFRP Gelcoat Panels For Truck & RV Bodies
FRP Gelcoat Panels for Truck & RV Bodies - TANGSHAN RUNFENG
Gelcoat FRP Panels
Factory-direct fiberglass reinforced plastic panels engineered for refrigerated truck bodies, RV sidewalls, and composite sandwich panels. Built to perform - priced to compete.
10–15 Year Warranty
UV Resistance -40°C to +80°C Width up to 3.2m
What Are Gelcoat FRP Panels?
A lightweight, high-strength solution for modern transportation and construction
Gelcoat FRP (Fiberglass Reinforced Plastic) panels are composite sheets made from high-quality unsaturated polyester resin reinforced with fiberglass mat or woven fabric, finished with a durable gelcoat surface. Widely used as the outer skin and interior lining for refrigerated trucks, dry freight vans, RV/caravan bodies, and composite sandwich panels, our panels deliver exceptional strength-to-weight ratio, weather resistance, and long service life - at a price point that makes sense for your production line.
⚖️
Lightweight & High-Strength
Density 1.5–2.0 g/cm³ - only 1/4 to 1/5 the weight of carbon steel, yet tensile strength reaches 90+ MPa. Less weight means better fuel economy for your vehicles.
💧
Corrosion & Weather Resistant
Resists water, acids, alkalis, salts, oils, and most organic solvents. No rust, no rot - ideal for vehicles operating in harsh environments and coastal regions.
🌡️
Excellent Thermal Insulation
Thermal conductivity only 1/100 to 1/1000 of metal - helps maintain interior temperature in refrigerated trucks, reducing energy costs and compressor wear.
💰
Cost-Effective & Factory-Direct
No middlemen. You buy directly from our Tangshan factory, getting competitive pricing that beats most international competitors - without sacrificing quality.
⚡
Electrical Insulation
Excellent dielectric properties even at high frequencies. Safe for applications where electrical isolation matters - ambulances, mobile clinics, and specialty vehicles.
🎨
Fully Customizable
Customize thickness (0.7–5.0mm), width (up to 3.2m), length, color, surface texture, and backing. We manufacture to your exact specifications.
Basic Specifications
Standard range - custom requirements welcome
| Parameter | Specification |
|---|---|
| Fiberglass Type | Fiberglass Mat (CSM) / Woven Fabric |
| Resin System | Unsaturated Polyester (UP) / Vinyl Ester (VE) upon request |
| Surface Finish | High-gloss Gelcoat (standard) / Matt / Textured |
| Backing | Non-woven polyester veil for foam adhesion |
| Temperature Range | -40°C to +80°C |
| UV Resistance | >99% UV blocking |
| Warranty | 10–15 years |

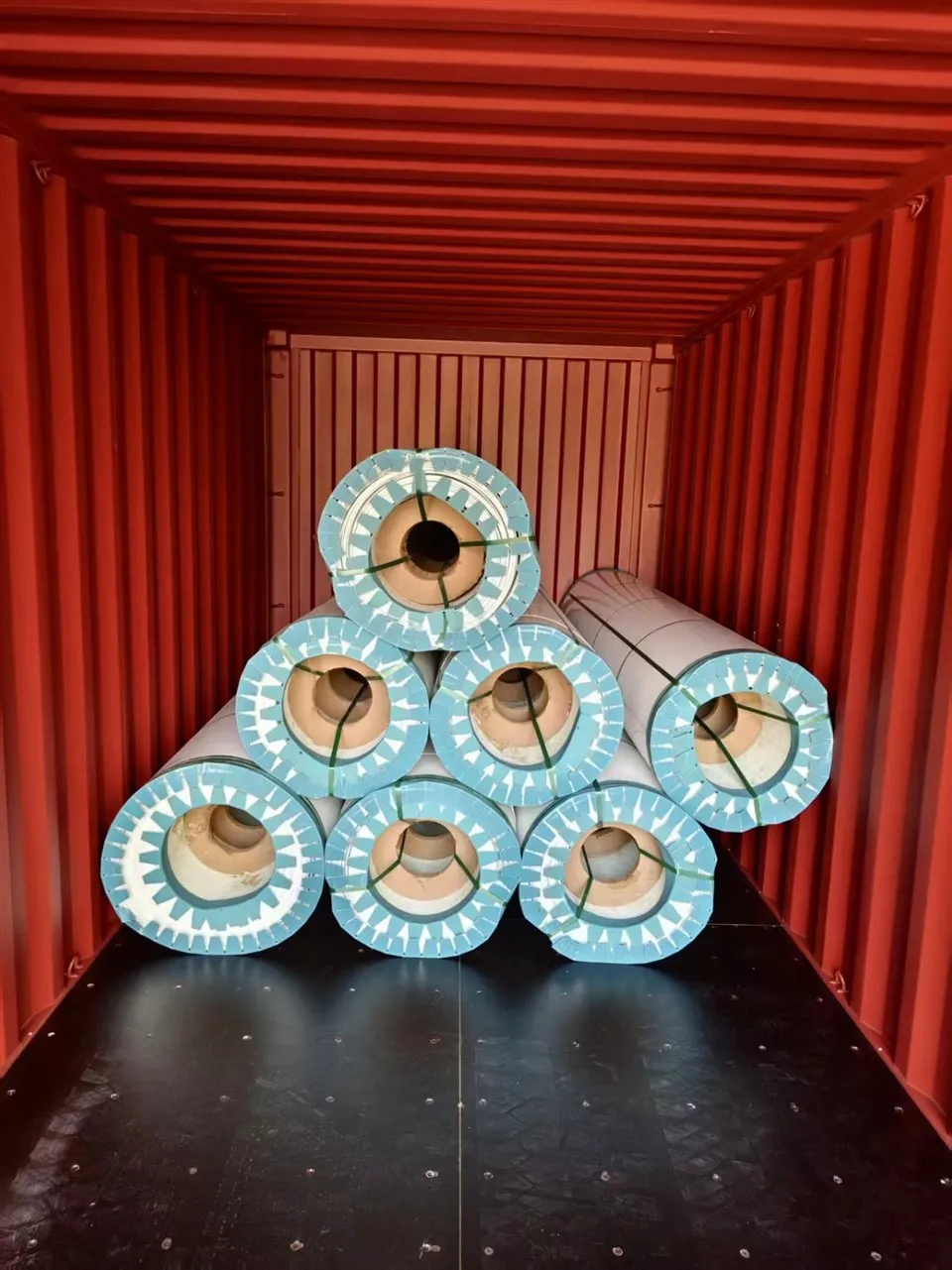

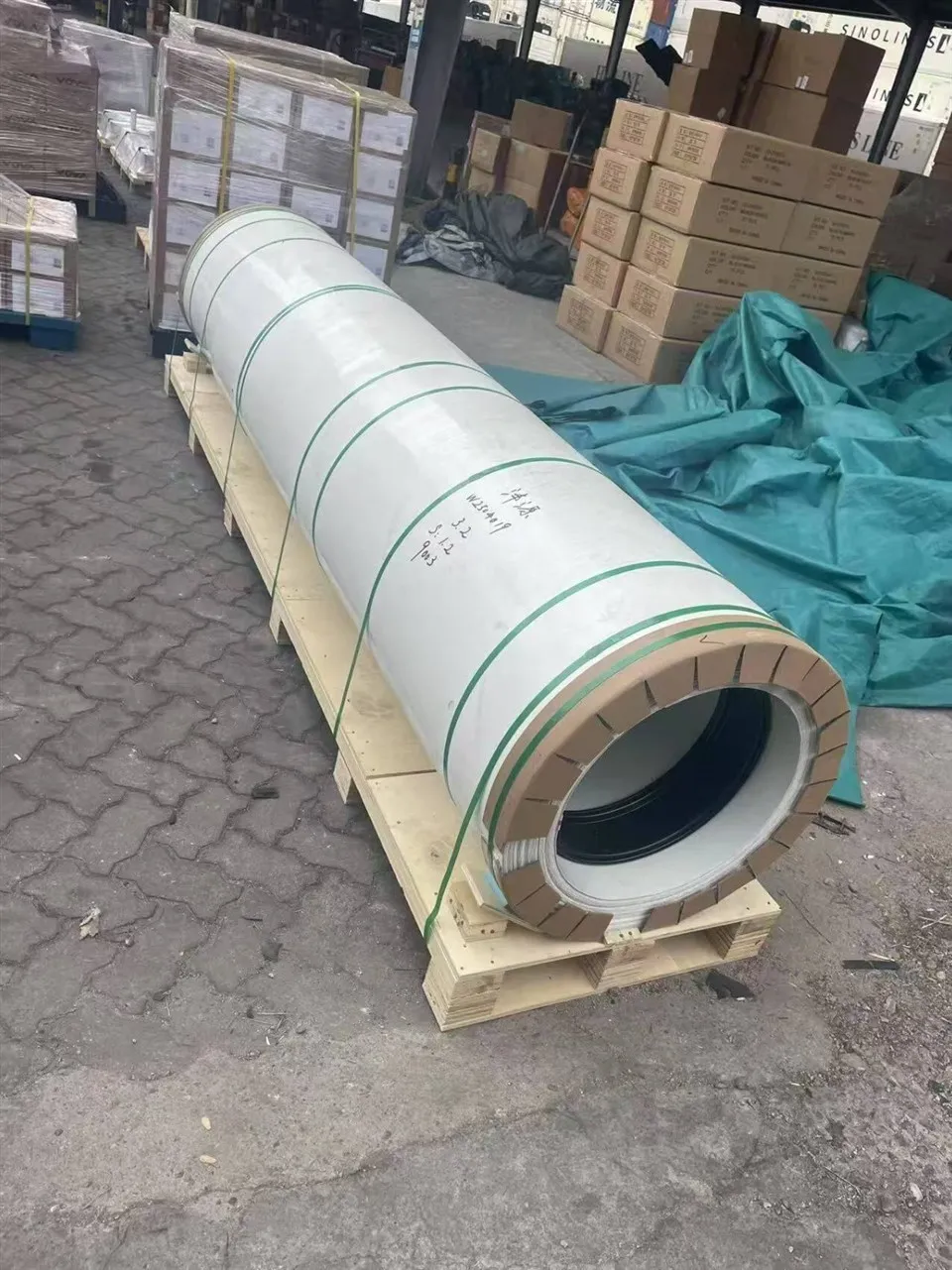

| Form | Roll (≥100m) or Cut-to-Size Sheet |
| Width | Up to 3.2m (custom width available) |
| Thickness | 0.7mm – 5.0mm |
Three-Layer Structure
Each layer is engineered for a specific function
Gelcoat Surface Layer UV protection · Color retention · Scratch & chemical resistance · Easy to clean
Fiberglass Reinforcement High tensile strength · Impact resistance · Lightweight core · Dimensional stability
Thermoset Resin Matrix Excellent bonding · No voids or bubbles · Crack-resistant · Long service life
Choose Your Base Material
Two options to match your exact application requirements
🧶 Mat Base (CSM)
- Random fiber orientation - isotropic strength
- More cost-effective - ideal for price-sensitive orders
- Optional non-woven backing for superior foam bonding
- Best for: refrigerated truck liners, sandwich panel skins
🧵 Fabric Base (Woven)
- 90° woven fiber orientation - higher directional strength
- Smoother surface finish - premium visual appearance
- Higher tensile and flexural strength than mat base
- Best for: RV exterior skins, high-end vehicle bodies
Surface Finish Options
Standard textures - custom finishes available on request
✨
Glossy
Mirror-smooth, high-shine finish for premium vehicle exteriors
🌫️
Matt
Low-glare, modern aesthetic - popular for RV and architectural use
🪨
Stone Texture
Natural stone-like grain for decorative panels and unique designs
🧵
Weave Texture
Subtle woven pattern that highlights the fiberglass identity
🫧
Bubble Texture
Non-slip dimpled surface - practical for flooring and steps
🎨
Custom
Send us your sample or spec - we match it.
Physical Performance Data
Tested values by thickness (Mat Base / UP Resin, 30% glass content at 3.0mm)
| Property | 1.0mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm |
|---|---|---|---|---|---|
| Weight (kg/m²) | 1.3 | 2.1 | 2.6 | 3.2 | 4.0 |
| Glass Content (%) | 19 | 25 | 29 | 30 | 30 |
| Tensile Strength (MPa) | 60 | 80 | 92 | 95 | 97 |
| Elongation at Break (%) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Elastic Modulus (GPa) | 5.5 | 7.0 | 7.3 | 7.6 | 7.8 |
| Izod Impact Strength (kJ/m²) | 45 | 55 | 70 | 80 | 95 |
Values above are for Mat Base / UP Resin system. Custom formulations available for higher performance requirements.
Where Our Panels Are Used
Proven across transportation, construction, and marine industries
🚛
Refrigerated Trucks
Body exterior skin, interior lining, floor panels for reefer and insulated trucks
🚐
Dry Freight Vans
Sidewall and roof panels for enclosed cargo vans and box trucks
🏕️
RV / Caravans
Exterior sidewalls, roof, floor, and door skins for motorhomes and travel trailers
🚑
Specialty Vehicles
Ambulances, mobile clinics, food trucks, command vehicles
🏗️
Construction
Mobile homes, portable toilets, guard booths, modular buildings
🧱
Composite Sandwich Panels
Face sheets for XPS / PU / PET / PVC foam core panels
⛵
Marine
Yacht and boat interior panels, deck linings, bulkheads
📋
Other Applications
Signage, solar panel backsheets, furniture, wind turbine blades, shelving
Why TANGSHAN RUNFENG?
A reliable manufacturing partner, not just a supplier
🏭
Modern Factory
Production lines in Tangshan, Hebei Province - one of China's major industrial hubs with convenient logistics and port access.
📦
Stable Supply Chain
Consistent raw material sourcing, large production capacity, and ample inventory ensure your orders ship on time - every time.
🌍
Global Export Experience
Serving customers across Southeast Asia, the Middle East, Africa, South America, and Europe. We understand international trade requirements.
🔬
Quality Control
Every batch is tested for tensile strength, impact resistance, UV stability, and surface quality before shipment.
🤝
OEM & ODM Ready
Custom formulations, colors, packaging, and labeling - we produce under your brand if needed.
⚡
Fast Response
Quotations within 24 hours. Samples shipped within 3–5 working days. We respect your time.
Also Available: High-Performance CFRT Panels
Continuous Fiber Reinforced Thermoplastic sheets - the next generation
Looking for even higher impact resistance, recyclability, and thermoforming capability? Ask us about our CFRT (Continuous Fiber Reinforced Thermoplastic) panels - ideal for demanding applications in automotive, aerospace, and premium RV manufacturing.
