Fiberglass Roofing Sheet

Fiberglass roofing sheet has High transmission rate, lightweight, high strength, sound insulation and fire retardancy. The remarkable advantage is simply constructed.

• Thickness: 1.0mm1.2mm1.5mm 2.0mm 3.0mm 4.0mm

• Heavy Load-bearing Capacity: It features high strength and high rigidness and is suitable either for the weight-bearing structure or for protective structure.

• Width Developed Length: 360mm~2500mm;

• Color: colorless (other color such as light blue, royal blue, light green, milkiness);

• Light transmittance: 50-60%(milkiness),75-85%(light blue);

• Heat resistance limit: -40-120℃;

• Anti-ultraviolet rate: 99%;

• Tensile Strength: 100Mpa;

• Flexural Strength: 180Mpa;

• Cracking Elongation Rate: 2%.

• Barcol scale of hardness more than 50;

• Good tenacity. No cracking phenomenon when driving nails in roof installation.

• Having close combining with color steel plate. Cross- section thickness is uniform. The shape of FRP is consistent with steel plate.

• Transmittance loss rate is low. No yellowing phenomenon after long term service.

• Thermal expansion coefficient is close to that of steel plate. No cracking and water leakage in nail driving place because of expand with heat and contract with cold.

• Light through FRP assumes scattering shape and gentle.

Advantages

Length: Cut as per customers' requirements.

Profiles: There are lots of profiles.

About us

Production capacity(4 lines)

1. Super wide type production line

1) Maximum width 3000 mm flat or corrugated sheet .It greatly improve construction efficiency, reduce hidden trouble of leakage.

2) Production: 8000 meters/day

2. Standard production line

1) Device length：64 meters

2) Profile：Over 300 general profiles

3) Double covering film technology

4) Full-automatic control

Company Introduction

Tangshan Runfeng composite materials Co.,Ltd. is a company who is committed to produce high. Quality lighting FRP panel, and provide service for construction and maintenance system of roof lighting both at home and abroad. The advanced continuous FRP molding production line was imported From USA at the beginning of the establishment. Along with the development, relying on the strong Source on research and development, the more advanced production line was independent designed and put into production, which is the first FRP continues production line in mainland, the production efficiency is 30% increased.

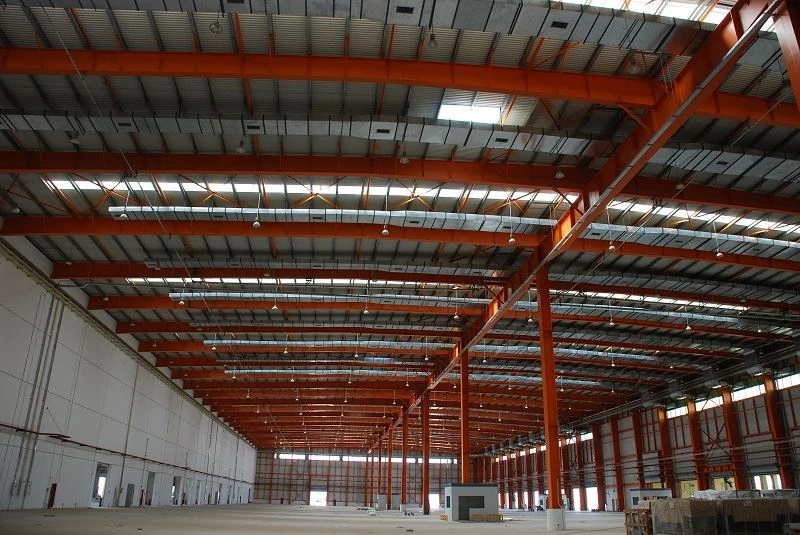

Application
